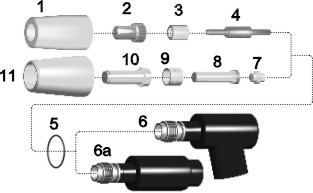

PT-31, PT-31XL, XT Torches
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-0289 |
18204 |
Shield Cup |
1 |
|
|
AK-0290 |
20282 |
Shield Cup, XL |
1 |
|
2 |
AK-0291 |
18866 |
Tip, 30 Amp |
10 |
|
|
AK-0292 |
19682 |
Tip, XL, 30 Amp |
10 |
|
|
AK-1297 |
20079 |
Tip, XL, 50 Amp |
10 |
|
3 |
AK-0293 |
18785 |
Swirl Baffle |
10 |
|
|
AK-0294 |
20463 |
Swirl Baffle, XL |
10 |
|
4 |
AK-0295 |
18205 |
Electrode |
10 |
|
|
AK-0296 |
19683 |
Electrode, XL |
10 |
|
5 |
AK-0357 |
950790 |
O-Ring (055800514) |
10 |
|
6 |
AK-0297 |
20072 |
TMT-31 Hand Torch |
1 |
|
6a. |
AK-0298 |
20073 |
TMT-31 Machine Torch |
1 |
|
7 |
AK-1172 |
20324 |
Plunger, XT (OEM torch only) |
5 |
|
8 |
AK-1173 |
20862 |
Electrode, XT (055800507) |
10 |
|
9 |
AK-0294 |
20463 |
Swirl Baffle, XT (055800506) |
10 |
|
10 |
AK-1174 |
20860 |
Tip, 30 Amp, XT (055800512) |
10 |
|
|
AK-1175 |
21008 |
Tip, 40 Amp, XT (055800508) |
10 |
|
|
AK-1176 |
20861 |
Tip, 50 Amp, XT (055800513) |
10 |
|
11 |
AK-0290 |
20282 |
Heat Shield, XT |
1 |
|
NS |
AK-1893 |
19679* |
Seat, Brass |
1 |
|
NS |
AK-2218 |
KPE31 |
Parts Kit PT31 |
1 |
|
NS |
AK-0764 |
KPE31XL |
Parts Kit PT31XL |
1 |
|
NS |
AK-2217 |
KPE31XT |
Parts Kit PT31XT |
1 |
|
NS |
AK-3488 |
21052 |
Spare Parts Kit 31XL |
1 |
|
NS |
AK-3490 |
21051 |
Spare Parts Kit 31XT 50A |
1 |
PT-31, PT-31XL, XT Torches — Accessories
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-1177* |
18208 |
Handle |
1 |
|
2 |
AK-1178* |
18207 |
Switch Band |
1 |
|
3 |
AK-1179 |
18224 |
Switch |
1 |
|
4 |
AK-1180* |
18225 |
Flex Support |
1 |
|
5 |
AK-1181 |
19672 |
Power Cable, 12,5’ |
1 |
|
|
AK-1182 |
18221 |
Power Cable, 25’ |
1 |
|
|
AK-1183 |
19028 |
Power Cable, 50’ |
1 |
|
6 |
AK-1184 |
19675 |
Sheath, 12,5’ |
1 |
|
|
AK-1185 |
18320 |
Sheath, 25’ |
1 |
|
|
AK-1272 |
19026 |
Sheath, 50’ |
1 |
|
7 |
AK-1187* |
2062336 |
Plug |
1 |
|
8 |
AK-1188 |
T-1188 |
Control Cable, 12.5’ |
1 |
|
|
AK-1189 |
T-1189 |
Control Cable, 25’ |
1 |
|
|
AK-1190 |
T-1190 |
Control Cable, 50’ |
1 |
|
9 |
AK-1191 |
T-1191 |
Leads Assy, 12.5’ |
1 |
|
|
AK-1192 |
T-1192 |
Leads Assy, 25’ |
1 |
|
|
AK-1193 |
19027 |
Leads Assy, 50’ |
1 |
|
NS |
AK-1194 |
20084 |
Hand Torch w/12.5’ Leads |
1 |
|
NS |
AK-1195 |
20080 |
Hand Torch w/25’ Leads |
1 |
|
NS |
AK-1196 |
20082 |
Hand Torch w/50’ Leads |
1 |
|
NS |
AK-1197 |
20085 |
Machine Torch w/12.5’ Leads |
1 |
|
NS |
AK-1198 |
20081 |
Machine Torch w/25’ Leads |
1 |
|
NS |
AK-1199 |
20083 |
Machine Torch w/50’ Leads |
1 |
|
NS |
AK-1326 |
49N83 |
Boot |
1 |
|
|
|
|
|
|
|
XL, XT AND STANDARD PARTS SHOULD NOT BE MIXED
WHEN CUTTING |
|
**A UNIQUE DESIGN WHICH ENHANCES PERFORMANCE AND DIFFERS
FROM OEM DESIGNS ESAB®, PT-15®, PT-15XL® are the Registered Trademarks
of ESAB. L-TEC® is the Registered Trademark of L-TEC® Cutting Systems. *
OEM Manufactured Parts |
|
|
