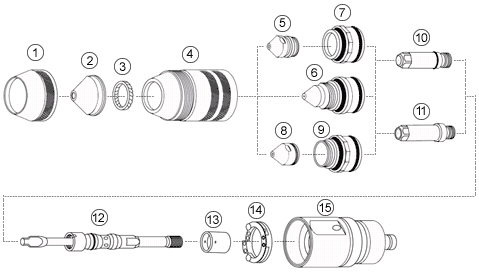

PT-19XLS Torch
|
Item |
Part No |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-3894* |
37081 |
Shield Retainer |
1 |
|
2 |
AK-2266 |
21802 |
Shield, 100A - 250A |
1 |
|
|
AK-2267 |
21945 |
Shield, 360A |
1 |
|
3 |
AK-2268 |
21796 |
Diffuser, 50A |
1 |
|
|
AK-2269 |
21944 |
Diffuser, 100A - 600A |
1 |
|
4 |
AK-3895* |
37082 |
Nozzle Retaining Cup |
1 |
|
|
AK-4583* |
37431 |
Nozzle Retainer |
1 |
|
5 |
AK-1720 |
22026 |
Nozzle, 50A |
5 |
|
6 |
AK-2271 |
21822 |
Nozzle, 250A |
1 |
|
|
AK-2272 |
35885 |
Nozzle, 360A |
1 |
|
7 |
AK-1721 |
22027 |
Nozzle Base, 50A |
1 |
|
8 |
AK-1717 |
22029 |
Nozzle, 100A |
5 |
|
|
AK-1718 |
22030 |
Nozzle, 150A |
5 |
|
|
AK-1719 |
22031 |
Nozzle, 200A |
5 |
|
|
AK-4197 |
21822-S |
Nozzle Tip, 250A |
5 |
|
9 |
AK-1722 |
22028 |
Nozzle Base, 100A - 400A |
1 |
|
10 |
AK-1252 |
34086XL |
Electrode |
5 |
|
|
AK-4905** |
34086XL AG |
Electrode, 50-250A, Silver-EX |
5 |
|
|
AK-4904** |
35886XL AG |
Electrode, 360A, Silver-EX |
5 |
|
11 |
AK-2348* |
34557 |
Electrode, N2 |
1 |
|
|
AK-4107* |
22403 |
Electrode, N2, H-35, 600A |
1 |
|
12 |
AK-4177* |
37068 |
Electrode Holder |
1 |
|
13 |
AK-0322 |
948142 |
Swirl Baffle, Alumina 4 Hole |
2 |
|
|
AK-0323 |
948143 |
Swirl Baffle, Alumina CCW |
2 |
|
|
AK-2019 |
35660 |
Swirl Baffle, 8 Holes |
1 |
|
14 |
AK-4176* |
37071 |
Contact Ring |
1 |
|
15 |
AK-4179* |
37083 |
Insulator Assembly |
1 |
|
NS |
AK-3422 |
37066 |
Torch Body |
1 |
|
NS |
AK-1257 |
996528 |
O - Ring |
10 |
|
NS |
AK-1255 |
86W85 |
O - Ring |
10 |
|
NS |
AK-0747 |
951000 |
O - Ring |
10 |
|
NS |
AK-1953 |
2064106 |
O - Ring |
10 |
|
NS |
AK-1876 |
181W89 |
O - Ring |
2 |
|
NS |
AK-1989 |
2221978 |
O - Ring |
10 |
|
NS |
AK-1337 |
19483 |
Sleeve |
1 |
|
NS |
AK-4174* |
37073 |
Screw, Contact Ring |
1 |
PT-19XL Torch
|
Item |
Part No |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-1249 |
948186 |
Heat Shield |
5 |
|
|
AK-1889 |
19506 |
Heat Shield, HD |
1 |
|
2 |
AK-1250 |
34085 |
Retaining Cap |
1 |
|
3 |
AK-1717 |
22029 |
Nozzle, 100 A |
5 |
|
|
AK-1718 |
22030 |
Nozzle, 150 A |
5 |
|
|
AK-1719 |
22031 |
Nozzle, 200 A |
1 |
|
|
AK-1720 |
22026 |
Nozzle, 50 A |
5 |
|
3a. |
AK-1721 |
22027 |
Nozzle, Base, 50 A |
1 |
|
|
AK-1722 |
22028 |
Nozzle, Base, 100-200A |
1 |
|
4 |
AK-1252 |
34086 |
Electrode |
5 |
|
5 |
AK-1253 |
34084 |
Electrode Holder |
1 |
|
6 |
AK-0322 |
948142 |
Swirl Baffle, Ceramic |
2 |
|
7 |
AK-1724 |
20434 |
Insulator Assembly |
1 |
|
8 |
AK-1725 |
20391 |
Torch Body |
1 |
|
NS |
AK-1427 |
35568 |
Nozzle, Bevel, O2 |
1 |
|
NS |
AK-1426* |
35569 |
Nozzle, Bevel, O2,
CCW |
1 |
|
NS |
AK-1248* |
21940 |
Contact Ring Ass’y |
1 |
|
NS |
AK-1247 |
996242 |
Locating Pin |
1 |
|
NS |
AK-1254 |
996527 |
O-Ring |
10 |
|
NS |
AK-1255 |
86W85 |
O-Ring |
10 |
|
NS |
AK-1256 |
996526 |
O-Ring |
10 |
|
NS |
AK-1257 |
996528 |
O-Ring |
10 |
|
NS |
AK-2266 |
21802 |
Shield, 100-250 Amp |
1 |
|
NS |
AK-2267 |
21945 |
Shield, 100-360 Amp |
1 |
|
NS |
AK-2268 |
21796 |
Diffuser, 50 Amp |
1 |
|
NS |
AK-2269 |
21944 |
Diffuser, 100-360 Amp |
1 |
|
NS |
AK-2270 |
21982 |
Nozzle Retainer |
1 |
|
NS |
AK-2271 |
21822 |
Nozzle, 250 Amp |
1 |
|
NS |
AK-2272 |
35885 |
Nozzle, 360 Amp |
1 |

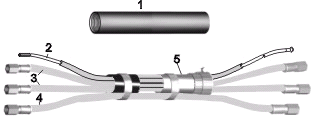

PT-19XL Torch Accessories
|
Item |
Part No |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-1337 |
19483 |
Insulating Sleeve |
1 |
|
2 |
AK-2309 |
34357 |
Pilot Arc Cable, 6´ |
1 |
|
|
AK-1339 |
34358 |
Pilot Arc Cable, 12´ |
1 |
|
|
AK-1340 |
21263 |
Pilot Arc Cable, 15´ |
1 |
|
|
AK-1341 |
21264 |
Pilot Arc Cable, 20´ |
1 |
|
|
AK-1342 |
21265 |
Pilot Arc Cable, 25 |
1 |
|
3 |
AK-1343 |
996248 |
Power Cable, 6´ |
1 |
|
|
AK-1344 |
34363 |
Power Cable, 12´ |
1 |
|
|
AK-1345 |
21266 |
Power Cable, 15´ |
1 |
|
|
AK-1346 |
21267 |
Power Cable, 20´ |
1 |
|
|
AK-1347 |
21268 |
Power Cable, 25 |
1 |
|
4 |
AK-2310 |
34360 |
Gas Hose, 6´ |
1 |
|
|
AK-1349 |
34361 |
Gas Hose, 12´ |
1 |
|
|
AK-1350 |
21260 |
Gas Hose, 15´ |
1 |
|
|
AK-1351 |
21261 |
Gas Hose, 20´ |
1 |
|
|
AK-1352 |
21262 |
Gas Hose, 25´ |
1 |
|
5 |
AK-1359 |
T-1359 |
Shielding Braid |
1 |
|
|
|
|
|
|
|
**A UNIQUE DESIGN WHICH ENHANCES PERFORMANCE AND DIFFERS
FROM OEM DESIGNS ESAB®, PT-15®, PT-15XL® are the Registered Trademarks
of ESAB. L-TEC® is the Registered Trademark of L-TEC® Cutting Systems. *
OEM Manufactured Parts |
|
|
