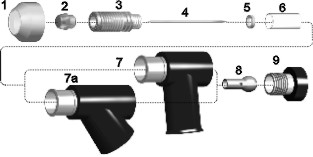

PT-121 Torch
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-0306 |
999261 |
Heat Shield |
10 |
|
|
AK-1879 |
18363* |
Heat Shield, Long |
5 |
|
|
AK-1302 |
20380* |
Gouging Heat Shield |
1 |
|
|
AK-1998 |
31411* |
Heat Shield Gouging HD |
1 |
|
|
AK-1881 |
18419 |
Drag Heat Shield |
1 |
|
2 |
AK-0308 |
999264 |
Tip, 150 Amp |
10 |
|
|
AK-0309 |
999263 |
Tip, 110 Amp |
10 |
|
|
AK-0310 |
17119 |
Tip, 55 Amp |
10 |
|
|
AK-1886 |
19160 |
Tip, Gouging |
5 |
|
3 |
AK-0311 |
999260 |
Front Body Insert |
1 |
|
|
AK-1895 |
19690 |
High Current Insert |
1 |
|
4 |
AK-0312 |
2075328 |
Electrode |
10 |
|
|
AK-1878 |
18362 |
Electrode, Long |
5 |
|
5 |
AK-0313 |
19540 |
Baffle (999265) |
5 |
|
|
AK-1896 |
19691 |
High Current Baffle |
1 |
|
6 |
AK-0315 |
999586 |
Spacer |
5 |
|
7 |
AK-1226 |
999248 |
Hand Torch, |
|
|
7a. |
AK-1227 |
999270 |
Machine Torch |
1 |
|
8 |
AK-0314 |
19656 |
Collet (999259) |
1 |
|
|
AK-1891 |
19654 |
Collet |
1 |
|
|
AK-1943 |
20387 |
Gouging Tip, 100A |
1 |
|
9 |
AK-1229 |
999257 |
Cap |
1 |
|
NS |
AK-0316 |
999262 |
Gasket |
5 |
|
NS |
AK-0317 |
994092 |
O-Ring |
10 |
|
NS |
AK-2131 |
85W50 |
O-Ring |
2 |

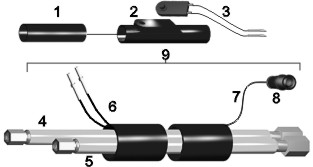

PT-121 — Accessories
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-1230 |
948177* |
Handle 1 8. T-1240 997758* |
1 |
|
2 |
AK-1231 |
6271074* |
Sheath 1 9. T-1241 T-1241 |
1 |
|
3 |
AK-1179 |
18224 |
Switch 1 T-1242 T-1242 |
1 |
|
4 |
AK-1232 |
18450 |
Power Cable, 25' |
1 |
|
|
AK-1233 |
18449 |
Power Cable, 50' |
1 |
|
5 |
AK-1234 |
999268 |
HF Cable, 25’ |
1 |
|
|
AK-1235 |
999280 |
HF Cable, 50’ |
1 |
|
6 |
AK-1236 |
995832 |
Sleeving, 25’ |
1 |
|
|
AK-1237 |
995826 |
Sleeving, 50’ |
1 |
|
7 |
AK-1238 |
948188 |
Control Cable, 25' |
1 |
|
|
AK-1239 |
948189 |
Control Cable, 50' |
1 |
|
8 |
AK-1240 |
997758* |
Connector |
1 |
|
9 |
AK-1241 |
T-1241 |
Hand Leads, 25' |
1 |
|
|
AK-1242 |
T-1242 |
Hand Leads, 50' |
1 |
|
|
AK-1243 |
T-1243 |
Machine Leads, 25' |
1 |
|
|
AK-1244 |
T-1244 |
Machine Leads, 50' |
1 |
|
NS |
AK-2191 |
999242 |
Hand Torch w/ 25' Leads |
1 |
|
NS |
AK-2192 |
999243 |
Hand Torch w/ 50' Leads |
1 |
|
NS |
AK-2193 |
999244 |
Machine Torch w/ 25' Leads |
1 |
|
NS |
AK-2352 |
999479* |
Machine Torch Handle |
1 |
|
NS |
AK-2194 |
999266 |
Center Tool |
1 |
PT-20AM® Torch
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-1314 |
21326 |
Heat Shield, 70/100 Amp |
1 |
|
|
AK-1315 |
21447 |
Heat Shield, 50 Amp |
1 |
|
2 |
AK-1316 |
21330 |
Tip, 50 Amp |
5 |
|
|
AK-1317 |
21329 |
Tip, 70 Amp |
5 |
|
|
AK-1318 |
21328 |
Tip, 100 Amp |
5 |
|
3 |
AK-1320 |
21150 |
Electrode |
10 |
|
4 |
AK-1321 |
21373 |
Insulator |
1 |
|
5 |
AK-1322 |
21374 |
Baffle Tube |
1 |
|
6 |
AK-1323 |
21332 |
Electrode Adaptor |
1 |
|
7 |
AK-1324 |
21372 |
Electrode Seat |
1 |
|
8 |
AK-1325 |
21359 |
Torch Body |
1 |
|
NS |
AK-0575 |
T-0575 |
17' Leads Assy |
1 |
|
NS |
AK-0576 |
T-0576 |
25' Leads Assy |
1 |
|
NS |
AK-0587 |
T-0587 |
50' Leads Assy |
1 |
|
NS |
AK-1300 |
448152 |
O-Ring |
10 |
|
NS |
AK-0572 |
21360 |
Torch Assy, 50', w/o Rack |
1 |
|
|
|
|
|
|
|
|
