 Optics For Amada® Laser Cutting Machines

Superior Performance and Quality Optics For Your Amada® Laser Cutting System.

Multi-system and quantity discounts available. Call LOM for price and availability.

Free Express Lens Replacement Service.

Amada® Nozzles All Pages                       Page 1,   2,   3,   4,   5,   6,   7,   8,   9,   10,  11.

Amada® Sensor Head Repair Service



ULTRA-LENS ADVANTAGES
Reuse your old mounts and save. Lens replacement is fast, easy and backed by our quality guarantee. Send us your mounts, we’ll do the rest.
New Ultra Low Absorption  Precision Lenses with <0.15% true absorption means longer life and better cuts.
Superior OEM Approved Optics
Lenses and Mounts Fully Tested
Optics Vacuum Packed To Maintain Ultra Clean Lenses
Most Lenses Available for Immediate Shipment



Ref  Number    LOM Part Number    Description

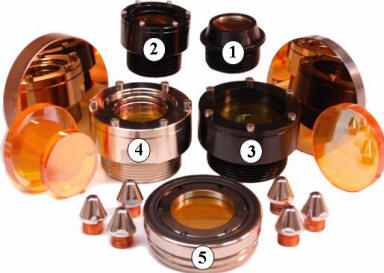

Mount Style See Picture

  Diameter Edge Thickness Focal Length

81140398    ALPCZ1.1-7.5-0.160-1050    New Mount with Lens 1 1.1" 0.16 7.5"
81140305    ALPCZ1.1-5.0-0.160-1049    New Mount with Lens 1 1.1" 0.16 5.0"

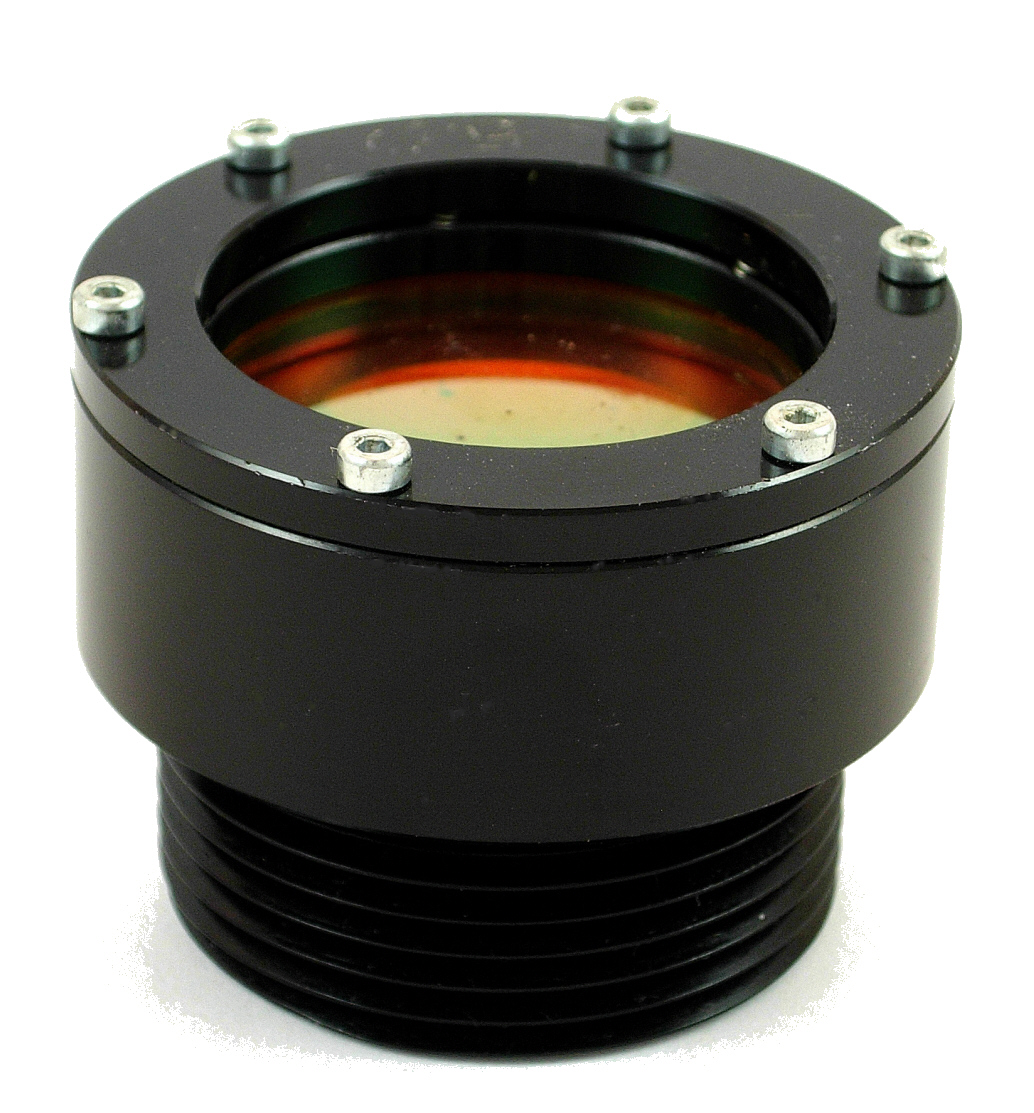

81140400, 7136096900    ALPCZ1.5-7.5-1030    New Mount with ULTRA Lens - Black 2 1.5" 0.31" 7.5"
81140306, 7135390200    ALPCZ1.5-5.0-1026    New Mount with ULTRA Lens - Black 2 1.5" 0.31" 5.0"

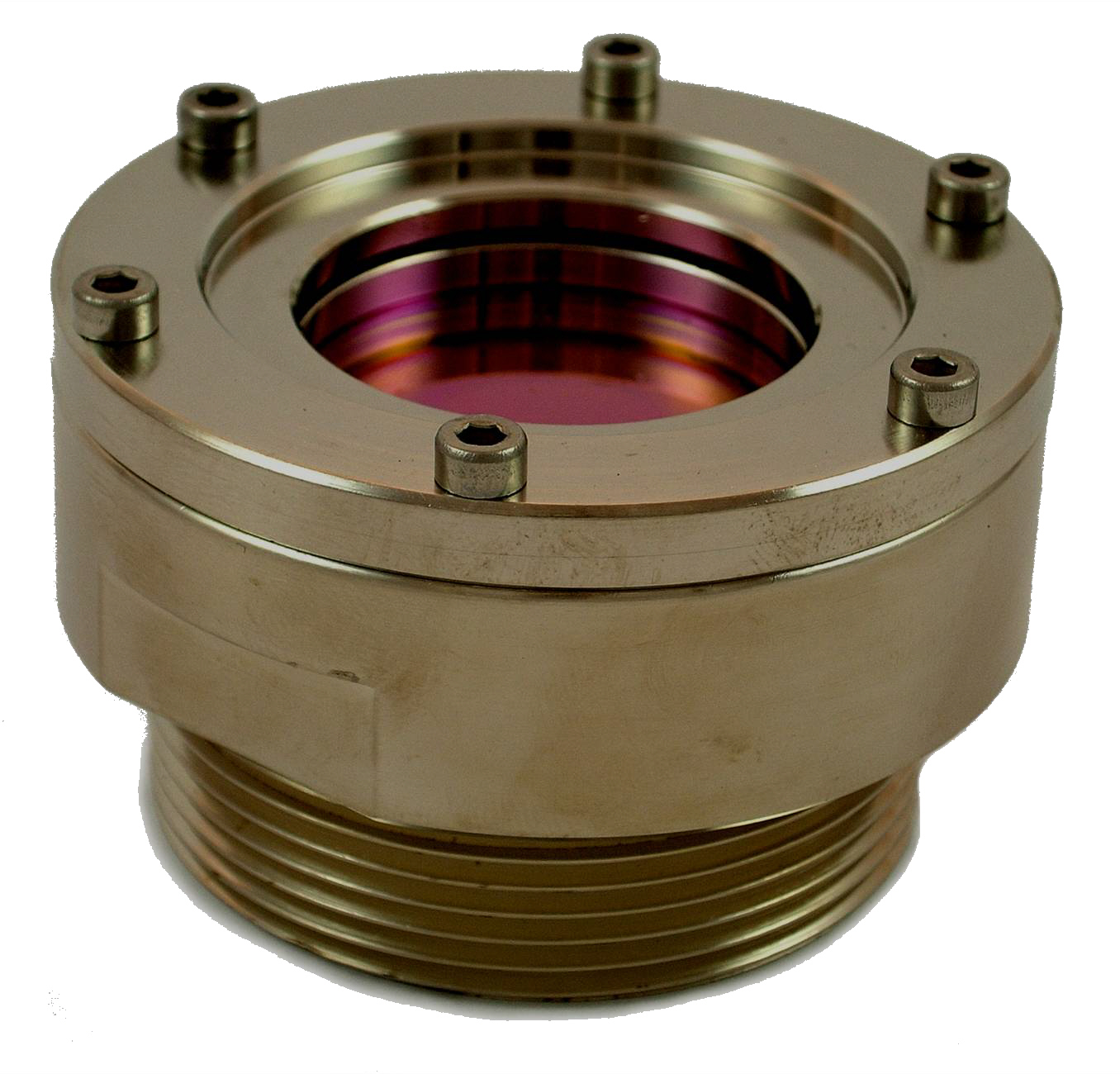

71369830, 7110968000    ALPZ1.5-5.0-1035    New Mount with ULTRA Lens - Gemini 4 1.5" 0.31" 5.0"
71369831, 7110968100    ALPZ1.5-7.5-1036    New Mount with ULTRA Lens - Gemini 4 1.5" 0.31" 7.5"

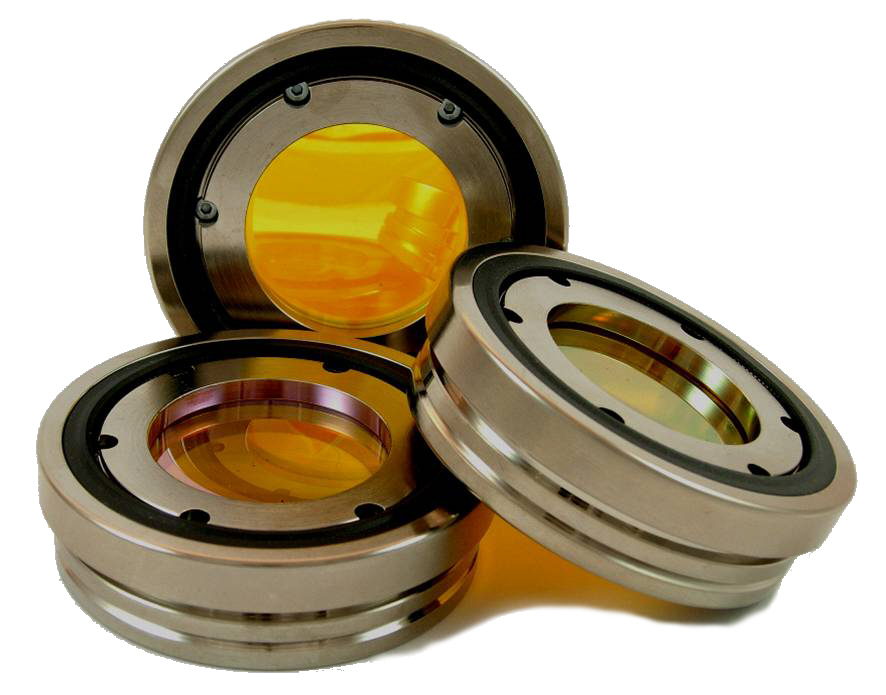

7973109  71501072             578662/CSM    APCZ1.5-5.0-1045    New Mount with ULTRA Lens - FO-NT 5 1.5" 0.31" 5.0"
7973110  71501070 306068/CSM    APCZ1.5-7.5-1046    New Mount with ULTRA Lens - FO-NT 5 1.5" 0.31" 7.5"

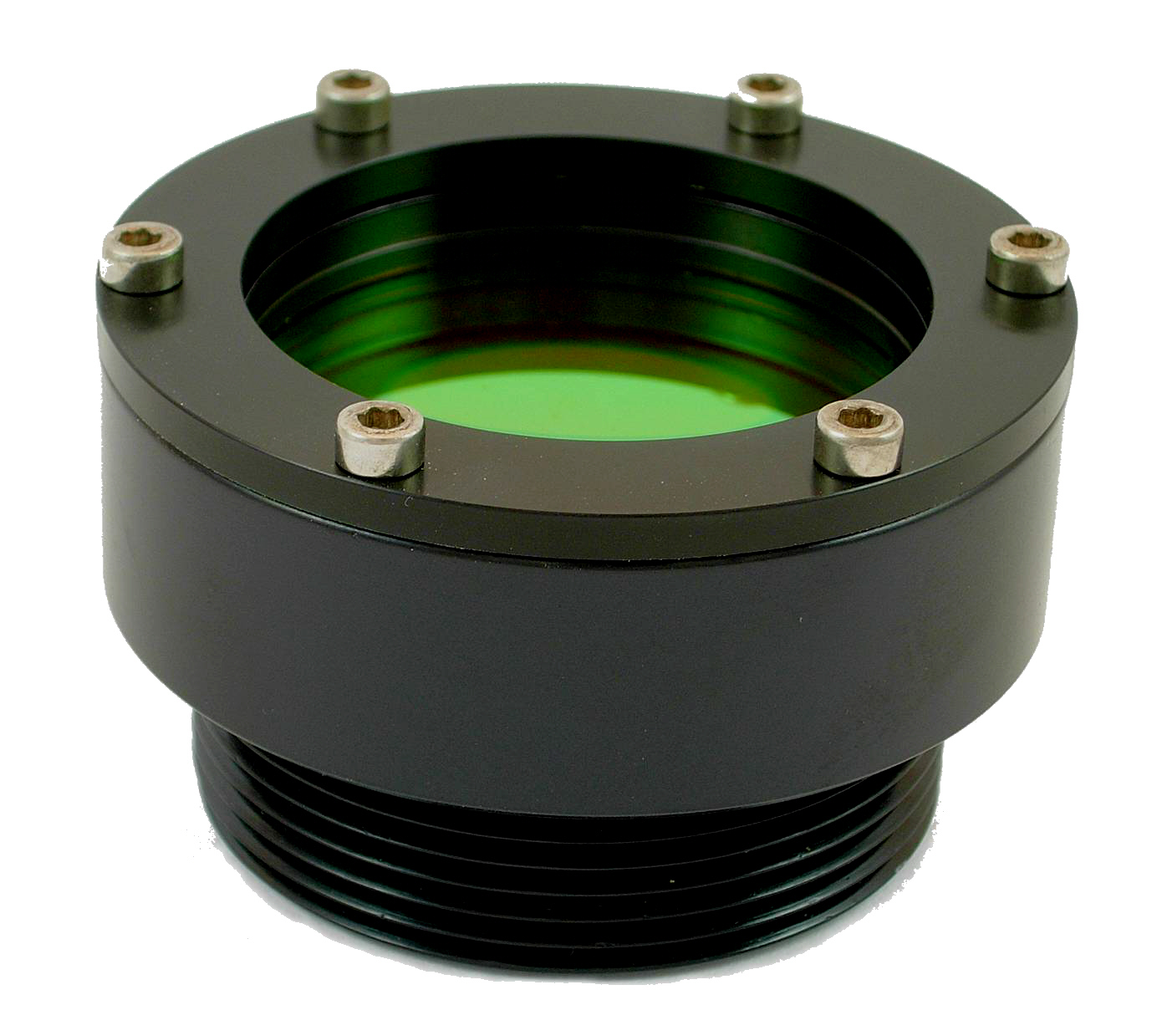

81140186, 71368467 253165    ALPCZ2.0-7.5-1022    New Mount with ULTRA Lens 3 2.0" 0.380" 7.5"
81140307, 71366182  310834    ALPCZ2.0-5.0-1028    New Mount with ULTRA Lens 3 2.0" 0.380" 5.0"
     ALPCZ2.0-7.5-1022LR    ULTRA Lens Replacement  Service  3 2.0" 0.380" 7.5"
     ALPCZ2.0-5.0-1028LR    ULTRA Lens Replacement  Service  3 2.0" 0.380" 5.0"
71198217

   ALPCZ2.0-7.5-1148LR

    ULTRA Lens Replacement  Service  6 (below) 2.0" 0.380" 7.5"
     RRS2.0-90-6001    90 deg Phase Shift Mirror   2.0" 0.2" Plano
     ZPSM-2.0-0.2-5006    Zero Degree Phase Shift Mirror   2.0" 0.2" Plano
     ZRS-3.0-0.25-5005    Zero Degree Phase Shift Mirror   3.0" 0.25" Plano
     RRS3.0-0.25-90-6006    90 deg Phase Shift Mirror   3.0" 0.25" Plano
71673918    TRMO-2.0-0.20-UC-8003    Zero Degree Phase Shift Mirror   2.0" 0.2" Plano
