Ultra Series Resonator Optics

New Ultra PR Technology

LOM 3015 - EQ. LC63800

Mitsubishi® and Precitec Nozzles

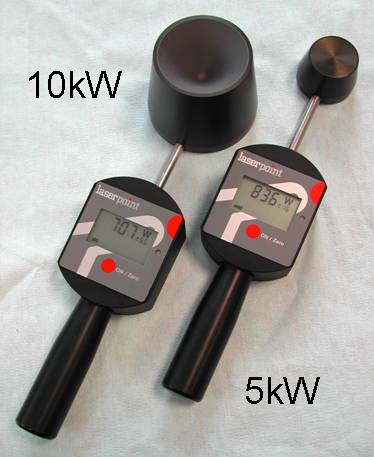

LASERPOINT CRONOS

5Kw AND 10Kw POWER METERS

FAST, ACCURATE DIGITAL

LASER POWER  MEASUREMENT





Optics & Nozzles for Mitsubishi®

Laser  Cutting Systems

HV ML2015, ML3122 Series

LVP ML2512, ML3015, ML3718 Series

LVPlus ML3015, ML3718 Series

LX  ML2512

LXP ML2512, ML3015 Series

LZP ML2512, ML3015, HDIIP Series

VZ1 ML2015 ML3122 Series

VZ2 ML2015 ML3122 Series

NX Series

Optics Cleaning Supplies

Dispensing Bottles

Isopropanol Alcohol

 Acetone

Methanol

Only $20 each

Professional Lens

Wipes 4"x4", 100 pcs

Refills Available

Only $15.00 each



W510-X Ultra-Lens



Technology







Click Picture For PDF Presentation



Extreme Performance



Ultra Cutting Lenses

Outperform Standard Lenses

Experience The Difference

Are you ready for it?



OEM approved, trusted by laser

 operators & engineers worldwide

Contact LOM for Technical

Datasheet on Ultra-Lens





Benefits



Superior Laser Power

Handling up to 6kW

Longer Lens Life

Better Cut Quality

Ultra-lenses available for

common industrial laser

cutting machines

Contact LOM Technical Sales

for more information..



Tel - USA  (858) 755 1105







UltraMaxR & Gold



 Coated Mirrors





Click Picture For PDF



Extreme Performance



Superior Laser Power

Handling up to 10kW

Robust Coatings For

Longer Life and Reliability

Super High Reflectivity

Increase Cutting Power

Water Cooled Copper

Standard Copper

Silicon & Molybdenum Mirrors

Resonator and External Mirrors

Zero Phase Shift Beam Mirrors

90 degree Phase Retarders

Back Reflection Absorbers (ATFR)

Phase Lock Mirrors

Gold Coated Mirrors

Maximum Total Reflectors

Off-Axis Parabolic Mirrors For Welding

Contact LOM Technical Sales

for more information



Tel - USA  (858) 755 1105





















































Mitsubishi® Ultra Cutting Lenses, Collimation Lenses, Partial Reflectors (PRs), Resonator Optics, Copper and Silicon Internal and External Mirrors

Low Prices, Superior Performance Optics and Consumables. Recommended by service engineers worldwide, LOM ultra optics have been thoroughly tested on Mitsubishi Lasers for over 10 year - Performance Guaranteed.  Multi-system and quantity discounts available. We can ship worldwide. Distributors welcome. Most optics and nozzles are in stock for immediate shipment. Call LOM for price and availability.

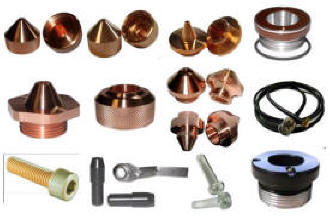

Mitsubishi® High Quality Nozzles & Consumables Full List

OEM Ref # Other References LOM Part Number Dia. Edge Thickness Focal Length Description
Ultra Cutting Lenses
W015 695399, 232771 LPCZ2.0-0.38-7.5-1020     2.0" 0.380" 7.5" Ultra Cutting Lens, ZnSe
W510           BKO-ND6019H41, LPZC2.0-7.5-5047,  MB312-510,  892020, 635061, LX083 LPCZ2.0-0.31-7.5-1001 2.0" 0.310" 7.5"  OEM Quality Lens, ZnSe
W510-X           BKO-ND6019H41-X, LPZC2.0-7.5-5047,  MB312-510,  892020, 635061, LX083 LPCZ2.0-0.31-7.5-1039  2.0" 0.310" 7.5" Ultra Cutting Lens, ZnSe
W502   LPCZ2.0-0.31-10-1006  2.0" 0.310" 10.0" Ultra  Cutting  Lens, ZnSe
W505           BKO-ND6019H45, 304725 LPCZ2.0-0.31-5.0-1005 2.0" 0.310" 5.0"  Ultra Cutting  Lens, ZnSe
W505           BKO-ND6019H45, 304725 LPCZ2.0-0.31-5.0-1005-6 2.0" 0.310" 5.0"  OEM Quality Lens, ZnSe
W500           BKO-ND6019H43,  658108,  LX15050ZNA310HS, 106106, 578662,  LPCZ1.5-0.31-5.0-1003 1.5" 0.310" 5.0" Ultra Cutting  Lens, ZnSe
W018           BKO-ND6019H40,  LX15075ZNA315HS, 306068, 383862, 618938 LPCZ1.5-0.31-7.5-1004 1.5" 0.310" 7.5" Ultra Cutting  Lens, ZnSe
Collimation Lenses & Mirrors
W813 448393 LPCZ1.5-1033  1.5" 4.0mm 15.0m Collimation Lens, ZnSe
R250           BKO-ND7791H06, 607060 LPCZ1.5-1038 1.5" 4.0mm 11.0m Collimation Lens, ZnSe
R320 702155 LPCZ1.5-1037  1.5" 4.0mm 9.5m Collimation Lens, ZnSe
W1528   Collimation Mirror 60mm 6.0mm 22m Copper
W1529   Collimation Mirror 60mm 6.0mm 15m Copper
W513   Bend Mirror 60mm 6.0mm 14m Copper
W642   Collimation Mirror 60mm 6.0mm 12m Copper
Partial Reflectors and PR Assemblies (PR and TR)
R500          ND7000H11, 120765 PRZ1.5-3003  1.5" 6.0mm - PR (Partial Reflector), ZnSe
R508          ND7586H01, 554288 PRZ-1.5-3001 1.5" 6.0mm - PR (Partial Reflector), ZnSe
R519   PRZ1.5-3006  1.5" 6.0mm - PR (Partial Reflector), ZnSe
R259           BKO-ND7955H01, 187879 PRZ1.5-3004 1.5" 6.0mm - PR (Partial Reflector), ZnSe
R570           BKO-ND8249H02, 920843 PRZ2.0-3008  1.5" 6.0mm - PR (Partial Reflector), ZnSe
R322 247233 PRZ1.5-3007  1.5" 6.0mm - PR (Partial Reflector), ZnSe
R003          ND6481H05, 911209 PRZ-1.5-99-4002 1.5" 6.0mm   TR (Rear Mirror), ZnSe
R572           BKO-ND8138H08 PRZ1.5-99-9-4008 1.5" 9.0mm - TR (Rear Mirror), ZnSe
W1680        ND8397H04 PRZ2.0-6-17-xxxx 1.5" 6.0mm  -  PR (Partial Reflector), ZnSe
W1698        ND8138H08 PRC38.1-9-99-xxxx 1.5" 9.0mm   TR (Rear Mirror), ZnSe
LC63800    BQ210C458G01 APRZ1.5-3015 1.5" 6.0mm   PR Assembly, ZnSe
LC63800 /EX BQ210C458G01 - Exchange APRZ1.5-3015OR 1.5" 6.0mm   PR Replacement Service
W1698        ND8138H08 PRC38.1-9-99-xxxx 1.5" 9.0mm   TR (Rear Mirror), ZnSe
Resonator (Cavity) Mirrors - STRs and ITRs
R106              ND7776H01, 148570, 219719 HR1.1-EG-7001 - Dielectric 1.1" 6.0mm Plano ITR  (EG) - Si
R106UMR    ND7776H01, 148570, 219719 HR1.1-EG-7003 - UltraMaxR 1.1" 6.0mm Plano ITR  (EG) - Copper
R107             W18V37560001, 482518 HR50.0-Au-7002 Gold Coated  50mm 9.0mm Plano STR (Gold Coated) - Cu
R571             ND7873H01 HR36-EG-7005 - Dielectric 36mm 6.0mm Plano ITR  (EG) - Si
R571UMR   ND7873H01 HR36-EG-7004 - UltraMaxR  36mm 6.0mm Plano ITR  (EG) - Copper
R321             ND7836H01, 434760  PLM-50-8007 - UltraMaxR  50mm 9.0mm Plano STR (Phase Lock) - Si
LA68000      ND7836H01, 434760  PLM-50-8011- UltraMaxR  50mm 9.0mm Plano STR (Phase Lock) - Si
External (Beam) Zero Phase Shift Mirrors - Copper and Silicon Substrates
R051             BV273C214G56, 658306 ZPCM-60-Au-5002-5 Gold Coating 60mm - Plano Zero Phaseshift, Copper
R051             BV273C214G56 ZPCM-60-UMR-5018-5 Dielectric 60mm - Plano Zero Phaseshift, Copper
W102           BV273C214G54, 370229 ZPCM-50-Au-5004-5 - Gold Coating 50mm - Plano Zero Phaseshift, Copper
W102           BV273C214G54, 370229 ZPCM-50-UMR-5015-5 - Dielectric 50mm - Plano Zero Phaseshift, Copper
R160   ZPSM-3.0- 5005 - Dielectric 3.0" - Plano Zero Phase - Silicon
R160 798125 ZPCM-3.0-Au-5003-5 - Gold Coating 3.0" - Plano Zero Phase  Copper
R160 798125 ZPCM-3.0-Au-5028 - Dielectric 3.0" - Plano Zero Phase Copper
W643           BQ919D007H02, 586494, 463116, 812039, LC942100 ZPCZ3.0-Au-5010-5 Gold Coating 3.0" - Plano Zero Phase  Copper
W643           BQ919D007H02, 586494, 463116, 812039, LC942100 ZPCM3.0-UMR-5026 - Dielectric 3.0" - Plano Zero Phase  Copper
W644           BQ919D007H01, 504755, 609647, LC94200 ZPCM-60-Au-5009-5  - Gold Coating 60mm - Plano Zero Phase  Copper
W644           BQ919D007H01, 504755, 609647, LC94200 ZPCM-60-Au-5025 - Dielectric 60mm - Plano Zero Phase  Copper
W645           BQ919D00H601, 728695 Back Reflection Suppressor, Phase Lock Mirror  60mm - Plano ATRF, Copper
R298             BV273C933G51, 571182, LP99700 B/O, Beam Optimizer, Flex Mirror 60mm - Plano Adaptive Mirror, Copper
    BellClean For Cleaning Gold Mirrors       Soft Sponge  For Cleaning                     Gold Mirrors
900, Phase Retarders or Retroretarder Mirrors
R004              BKO-ND6483H01, 335587, 102719 RRS2.0-90-6001  2.0" 0.2" Plano Phase Retarder, Silicon
W646   RRC60-90-6010 60mm 15mm Plano Phase Retarder, Copper
W317   RRC60-90-6009 60mm 6.0mm   Phase Retarder, Copper
LC51600        BQ919D005H02, 744069, 609647 RRC-3.0-6005-5 UltraMaxR HardCoat 3.0" 15.0mm Plano Phase Retarder, Copper

3015LZP 5042V-S3   2512LXP 4030S-S1   2512LXP 4030D-S1   2512LXP 3020D
2012LB 3016-F3   15SRP 806T2   25SRP 806T2   15SRP 1212H2   25SRP 1212H2   15SRP 2512H2   25SRP 2512H2   3016S 1212HB
3016F 1212HB   3016S 2512HB   3016F 2512HB   3016F2 1212HC (Z=6")
3016F3 1212HC (Z=6")   3016F2 2512HC (Z=6)   3016F3 2512HC (Z=6)   3016F2 1212HC (Z=12")
3016F3 1212HC (Z=12")   3016F2 2512HC (Z=12)   3016F3 2512HC (Z=12)   3016F2 3015HC
3016F3 3015HC   3016C 2512HC   3016C 3015HC   3016F3 1212HD (Z=6")
3016F3 2512HD (Z=6")   3016F3 1212HD (Z=12")   3016F3 2512HD (Z=12")  3016F3 3015HD
3016F3 3020D   3016F3 4030D   4030F3 1212HD   4030F3 2512HD
3016F3-LB 3020D- LB   4030F3 3015HD   2512LXP 3020D   3016F3 (5-AXIS) 3020HT
3015 LVPLus 35CFX   3015 LVPLus 40CFX   3015LPZ 5042-S3   3015HD 3020D
3015HDII 3020D   3015HC 3016C   5042S4   Mitsubishi 20CF2  Mitsubishi 35CFX Mitsubishi 40CFX



Cross-reference numbers:  BQ912C088G56     Q919D005H02 0114     ND 6481H25     LC47700    LB01300,     ND7586H01     LB01300     ND776H02     LT27300     ND7836H01     LS24000      LQ18500     R003     BK0ND6481H25     ND6481 H05     W18ND6481H05 R004     BKOND6483HO1     ND6483H01     R004     BKOND6483HO1     W18ND6483H01     R051     W18V27321456  R106 (ITR)ND7776H01     R106     BKOND7776HO1     ND7776H01     R107 (STR)     ND7836H01     W18V37560001   R160     W18V27321457     R161     ND6481H04    R269     R250     W18ND7791H06     R259    BK0ND7955H21     ND7955H21     R298     BV273C933G51   R320     R321     BKOND7836HO1     ND7836H01    LA68000   R322     R500     BK0ND7000H11   ND7000H11     R508     BKOND7586HO1     W18ND7586H01    ND7586H01     R519     BQ210C458G01     R570     NKO-ND8294H02     R572 W1698     BKOND8203HO1     ND8203H01     W006     W018     BKOND6019H40     ND6019H40     W018     W102     W18V27321454     W18V37560012     W317     W500     BKOND6019H43     ND6019H43     BKOND6019H43     W502     BKOND6019H49     W502/A     ND6019H49     W505     BKOND6019H45     W18ND6019H45     ND6019H45     W510     W18ND6019H41     W813     BKOND7791 H10     W18ND791 H10     ND7791H10     781603     870676     W1680     BK0ND8397H04     W642     W643     W643     Q919D007H02     W644     W644     Q919D007H01     W645     Q919D006H01     W646     Q919D005H01     W1528     W1529     LC51600     0919D005H02     R519A     R571     BKOND7873H01 ND7873H01     ND7873H21     ND6005     ND6014     ND6019H01     ND6019H12     ND6019H13     BKOND6019H13    ND6019H18     ND6019H19     ND6019H25     R001     ND6757H04     BKO-MA4009-H02     BK0-MA4009-H01     BKO-MA4009-H03     BKO-MA4009-H04     BQ919D007H01     BQ919D007H02     BQ919D005H02     BQ919D006H01     BO919D008H01     O919D008H01     BK0ND8539     ND8539     BK0ND6597     ND6597     BKOND6019H44     BKOND7042     ND7042     BK0ND6755     ND6755  911209 102719 560939 658306 148570 219719 482518 798125 920843 607060 187879 571182 276643 702155 434760 247233120765 554288 713885/CSM 145901 172546 970115 618938 389683 370229 928973 658108 679001 628275 304725 892020 448393 781603 870676 519044 635061 254894 586494 463116  812039 504755 608357 758338 728695 914883  634413 609647 876330 467855 744069 592025 713885 644227  240942 137144 546820 610927 637657 970115 970115 170726  522126 794170 572940 608357 463116 744069 728695 254894  120089 130202 207519 219581 423859

Mitsubishi® Nozzles and Consumables Complete List
