MITSUBISHI LASER HEIGHT
SENSORS
NEW AND REPAIRE
SERVICE
|
|
New Ultra PR
and TR Technology
LOM 3015 PR
Assembly |
 |
 |
|
|
Optics & Nozzles for
Mitsubishi®
Laser Cutting Systems
HV
ML2015, ML3122 Series
LVP
ML2512, ML3015, ML3718 Series
LVPlus ML3015, ML3718 Series
LX
ML2512
LXP
ML2512, ML3015 Series
LZP
ML2512, ML3015, HDIIP Series
VZ1
ML2015 ML3122 Series
VZ2
ML2015 ML3122 Series
NX
and EX
Series
|
 |
Dispensing
Bottles
Isopropanol Alcohol
Acetone
& Methanol
|
 |
Ultra Lens Wipes
100 pcs 4" x4"
Ultra Soft Wipe
Non-linting
Ideal for cleaning
soft ZnSe lenses.
|
 |
|
Cross-reference numbers:
BQ912C088G56 Q919D005H02
0114 ND 6481H25 LC47700
LB01300, ND7586H01 LB01300 ND776H02 LT27300 ND7836H01
LS24000 LQ18500
R003 BK0ND6481H25 ND6481
H05 W18ND6481H05 R004 BKOND6483HO1 ND6483H01 R004
BKOND6483HO1 W18ND6483H01 R051 W18V27321456 R106
(ITR)ND7776H01 R106 BKOND7776HO1 ND7776H01 R107 (STR)
ND7836H01 W18V37560001 R160 W18V27321457 R161 ND6481H04
R269 R250 W18ND7791H06 R259 BK0ND7955H21 ND7955H21
R298 BV273C933G51 R320 R321 BKOND7836HO1 ND7836H01
LA68000 R322 R500 BK0ND7000H11 ND7000H11 R508
BKOND7586HO1 W18ND7586H01 ND7586H01 R519 BQ210C458G01
R570 NKO-ND8294H02 R572 W1698 BKOND8203HO1 ND8203H01
W006 W018 BKOND6019H40 ND6019H40 W018 W102
W18V27321454 W18V37560012 W317 W500 BKOND6019H43
ND6019H43 BKOND6019H43 W502 BKOND6019H49 W502/A
ND6019H49 W505 BKOND6019H45 W18ND6019H45 ND6019H45
W510 W18ND6019H41 W813 BKOND7791 H10 W18ND791 H10
ND7791H10 781603 870676 W1680 BK0ND8397H04 W642
W643 W643 Q919D007H02 W644 W644 Q919D007H01 W645
Q919D006H01 W646 Q919D005H01 W1528 W1529 LC51600
0919D005H02 R519A R571 BKOND7873H01 ND7873H01 ND7873H21
ND6005 ND6014 ND6019H01 ND6019H12 ND6019H13
BKOND6019H13 ND6019H18 ND6019H19 ND6019H25 R001
ND6757H04 BKO-MA4009-H02 BK0-MA4009-H01 BKO-MA4009-H03
BKO-MA4009-H04 BQ919D007H01 BQ919D007H02 BQ919D005H02
BQ919D006H01 BO919D008H01 O919D008H01 BK0ND8539 ND8539
BK0ND6597 ND6597 BKOND6019H44 BKOND7042 ND7042
BK0ND6755 ND6755
911209 102719 560939 658306 148570 219719 482518 798125 920843 607060 187879
571182 276643 702155 434760 247233120765 554288 713885/CSM 145901 172546
970115 618938 389683 370229 928973 658108 679001 628275 304725 892020 448393
781603 870676 519044 635061 254894 586494 463116 812039 504755 608357
758338 728695 914883 634413 609647 876330 467855 744069 592025 713885
644227 240942 137144 546820 610927 637657 970115 970115 170726 522126
794170 572940 608357 463116 744069 728695 254894 120089 130202 207519
219581 423859
|
|
|
Click Picture For PDF Presentation
Extreme Performance
●
Ultra Cutting Lenses
Outperform Standard Lenses
Experience The Difference
Are you ready for it?
●
OEM approved, trusted by laser
operators
& engineers
worldwide
●
Contact LOM for Technical
Datasheet on Ultra-Lens
Superior Laser Power
Handling up to 6kW
●
Longer Lens Life
●
Better Cut Quality
●
Ultra-lenses available for
common industrial laser
cutting machines
●
Contact LOM Technical Sales
for more information..
Tel - USA (858) 755 1105
Click Picture For PDF
Extreme Performance
●
Superior Laser Power
Handling up to 10kW
●
Robust Coatings For
Longer Life and Reliability
●
Super High Reflectivity
Increase Cutting Power
●
Water Cooled Copper
Standard
Copper
Silicon & Molybdenum Mirrors
●
Resonator and External Mirrors
●
Zero Phase Shift Beam Mirrors
90 degree Phase Retarders
Back Reflection Absorbers (ATFR)
Phase Lock Mirrors
Gold Coated Mirrors
Maximum Total Reflectors
Off-Axis Parabolic Mirrors For
Welding
●
Contact LOM Technical Sales
for more information
Tel - USA (858) 755 1105
|
3015LZP 5042V-S3
2512LXP 4030S-S1
2512LXP 4030D-S1
2512LXP 3020D
2012LB 3016-F3
15SRP 806T2
25SRP 806T2
15SRP 1212H2
25SRP 1212H2
15SRP 2512H2
25SRP 2512H2
3016S 1212HB
3016F 1212HB
3016S 2512HB
3016F 2512HB
3016F2 1212HC (Z=6")
3016F3 1212HC (Z=6")
3016F2 2512HC (Z=6)
3016F3 2512HC (Z=6)
3016F2 1212HC (Z=12")
3016F3 1212HC (Z=12")
3016F2 2512HC (Z=12)
3016F3 2512HC (Z=12)
3016F2 3015HC
3016F3 3015HC
3016C 2512HC
3016C 3015HC
3016F3 1212HD (Z=6")
3016F3 2512HD (Z=6")
3016F3 1212HD (Z=12")
3016F3 2512HD (Z=12")
3016F3 3015HD
3016F3 3020D
3016F3 4030D
4030F3 1212HD
4030F3 2512HD
3016F3-LB 3020D-LB
4030F3 3015HD
2512LXP 3020D
3016F3 (5-AXIS) 3020HT
3015 LVPLus 35CFX
3015 LVPLus 40CFX
3015LPZ 5042-S3
3015HD 3020D
3015HDII 3020D
3015HC 3016C
5042S4
Mitsubishi 20CF2
Mitsubishi 35CFX
Mitsubishi 40CFX
ML2512HV-20CF2
Optics & Nozzles for
Mitsubishi®
Laser Cutting Systems
HV
ML2015, ML3122 Series
LVP
ML2512, ML3015, ML3718 Series
LVPlus ML3015, ML3718 Series
LX
ML2512
LXP
ML2512, ML3015 Series
LZP
ML2512, ML3015, HDIIP Series
VZ1
ML2015 ML3122 Series
VZ2
ML2015 ML3122 Series
NX
and EX
Series
|
|
|
Mitsubishi® Ultra Cutting Lenses, Collimation Lenses,
Partial Reflectors (PRs)
Resonator Optics, Copper and Silicon Internal and External Beam Mirrors |
|
|
Low Prices, Superior
Performance Optics and Consumables. Recommended by service engineers
worldwide, LOM ultra optics have been thoroughly
tested on Mitsubishi Lasers for over 10 year - Performance
Guaranteed. Multi-system and quantity discounts available. We
can ship worldwide. Distributors welcome. Most optics and nozzles
are in stock for immediate shipment. Call LOM for price and availability.
LOM is in no way affiliated with Mitsubishi®. Any references to OEM
part number are for your convenience only.
Most optics
in stock for immediate delivery. |
|
Ref # |
Industry Cross References |
LOM Part Number |
Dia. |
Edge Thickness |
Focal Length |
Description |
|
Ultra
Cutting Lenses - Extreme Performance. The Best Cutting
Lenses. Are you ready? |
|
W015-X |
695399, 232771 |
LPCZ2.0-0.38-7.5-1020
|
2.0" |
0.380" |
7.5" |
Ultra Cutting Lens, ZnSe |
|
W510-S
|
BKO-ND6019H41, LPZC2.0-7.5-5047, MB312-510, 892020, 635061,
LX083 |
LPCZ2.0-0.31-7.5-1001-6 |
2.0" |
0.310" |
7.5" |
OEM Quality Lens, ZnSe |
|
W510-X
|
BKO-ND6019H41-Ultra, LPZC2.0-7.5-5047, MB312-510, 892020,
635061, LX083 |
LPCZ2.0-0.31-7.5-1039 |
2.0" |
0.310" |
7.5" |
Ultra Cutting Lens, ZnSe |
|
W502-X |
|
LPCZ2.0-0.31-10-1006 |
2.0" |
0.310" |
10.0" |
Ultra Cutting Lens, ZnSe |
|
W505-X
|
BKO-ND6019H45, 304725 |
LPCZ2.0-0.31-5.0-1005 |
2.0" |
0.310" |
5.0" |
Ultra Cutting Lens, ZnSe |
|
W505-S
|
BKO-ND6019H45, 304725 |
LPCZ2.0-0.31-5.0-1157 |
2.0" |
0.310" |
5.0" |
OEM Quality Lens, ZnSe |
|
W500-X
|
BKO-ND6019H43, 658108, LX15050ZNA310HS, 106106, 578662,
|
LPCZ1.5-0.31-5.0-1003 |
1.5" |
0.310" |
5.0" |
Ultra Cutting Lens, ZnSe |
|
W018-X
|
BKO-ND6019H40, LX15075ZNA315HS, 306068, 383862, 618938 |
LPCZ1.5-0.31-7.5-1004 |
1.5" |
0.310" |
7.5" |
Ultra Cutting Lens, ZnSe |
|
Ultra Collimation Lenses & Mirrors
- Clean Beam Technology - Superior Mode Quality |
|
W813 |
448393 |
LPCZ1.5-1033 |
1.5" |
4.0mm |
15.0m |
Collimation Lens, ZnSe |
|
R250
|
BKO-ND7791H06, 607060 |
LPCZ1.5-1038 |
1.5" |
4.0mm |
11.0m |
Collimation Lens, ZnSe |
|
R320 |
702155 |
LPCZ1.5-1037 |
1.5" |
4.0mm |
9.5m |
Collimation Lens, ZnSe |
|
W1528 |
|
Collimation Mirror |
60mm |
6.0mm |
22m |
Copper |
|
W1529 |
|
Collimation Mirror |
60mm |
6.0mm |
15m |
Copper |
|
W513 |
|
Bend Mirror |
60mm |
6.0mm |
14m |
Copper |
|
W642 |
|
Collimation Mirror |
60mm |
6.0mm |
12m |
Copper |
|
Ultra Partial Reflectors (PR and TR)
- Clean Beam Technology - Superior Mode Quality |
|
R500 |
ND7000H11, 120765 |
PRZ1.5-3003 |
1.5" |
6.0mm |
- |
PR (Partial Reflector), ZnSe |
|
R508 |
ND7586H01, 554288,
10PRZ1.5-30-6436 |
PRZ-1.5-3001 |
1.5" |
6.0mm |
- |
PR (Partial Reflector), ZnSe |
|
R519 |
|
PRZ1.5-3006 |
1.5" |
6.0mm |
- |
PR (Partial Reflector), ZnSe |
|
R259
|
BKO-ND7955H01, 187879 |
PRZ1.5-3004 |
1.5" |
6.0mm |
- |
PR (Partial Reflector), ZnSe |
|
R570
|
BKO-ND8249H02, 920843 |
PRZ2.0-3008 |
2.0" |
6.0mm |
- |
PR (Partial Reflector), ZnSe |
|
R322 |
247233 |
PRZ1.5-3007 |
1.5" |
6.0mm |
- |
PR (Partial Reflector), ZnSe |
|
R003 |
BKO-ND6481H25, 911209,
20PRZ1.5-99-0247 |
PRZ-1.5-99-4002 |
1.5" |
6.0mm |
|
TR (Rear Mirror), ZnSe |
|
R572
|
BKO-ND8138H08 |
PRZ1.5-99-9-4008 |
1.5" |
9.0mm |
- |
TR (Rear Mirror), ZnSe |
|
W1680 |
ND8397H04 |
PRZ2.0-6-17-xxxx |
2.0" |
6.0mm |
- |
PR (Partial Reflector), ZnSe |
|
W1698 |
ND8138H08 |
PRC38.1-9-99-xxxx |
1.5 |
9.0mm |
|
TR (Rear Mirror), ZnSe |
|
LC63800 |
BQ210C458G01, Q210C458G01 |
APRZ1.5-3015 |
1.5 |
6.0mm |
|
40 CFX PR |
|
LC63800 /EX |
BQ210C458G01 - Exchange |
APRZ1.5-3015OR |
1.5 |
6.0mm |
|
PR Replacement Service |
|
W1698 |
ND8138H08 |
PRC38.1-9-99-xxxx |
1.5 |
9.0mm |
|
TR (Rear Mirror), ZnSe |
|
Resonator Mirrors - STRs and ITRs
- Clean Beam Technology - Superior Mode Quality |
|
R106
|
BKO-ND7776H01, 148570, 219719, V375C600G12 |
HR1.1-EG-7001 - Dielectric |
1.1" |
6.0mm |
Plano |
ITR (EG) - Si |
|
R106UMR |
BOK-ND7776H01-Ultra, 148570, 219719 |
HR1.1-EG-7003 - UltraMaxR |
1.1" |
6.0mm |
Plano |
ITR (EG) - Copper |
|
R107
|
BOK-W18V37560001, 482518 |
HR50.0-Au-7002 Gold Coated |
50mm |
9.0mm |
Plano |
STR (Gold Coated) - Cu |
|
R571
|
BKO-ND7873H01 |
HR36-EG-7005 - Dielectric |
36mm |
6.0mm |
Plano |
ITR (EG) - Si |
|
R571UMR |
BKO-ND7873H01 |
HR36-EG-7004 - UltraMaxR |
36mm |
6.0mm |
Plano |
ITR (EG) - Copper |
|
R321
|
BKO-ND7836H01, 434760 |
PLM-50-8007 - UltraMaxR |
50mm |
9.0mm |
Plano |
STR (Phase Lock) - Si |
|
LA68000 |
BKO-ND7836H01, 434760 |
PLM-50-8011- UltraMaxR |
50mm |
9.0mm |
Plano |
STR (Phase Lock) - Si |
|
External Zero Phase Shift Mirrors - Clean Beam Technology
- Superior Mode Quality |
|
R051
|
BV273C214G56, 658306,
LU03400 |
ZPCM-60-Au-5002-5 Gold Coating |
60mm |
- |
Plano |
Zero Phaseshift, Copper |
|
R051
|
BV273C214G56,
LU03400 |
ZPCM-60-UMR-5018-5 Dielectric |
60mm |
- |
Plano |
Zero Phaseshift, Copper |
|
W102
|
BV273C214G54, 370229,
LU03200 |
ZPCM-50-Au-5004-5 - Gold Coating |
50mm |
- |
Plano |
Zero Phaseshift, Copper |
|
W102
|
BV273C214G54, 370229,
LU03200 |
ZPCM-50-UMR-5015-5 - Dielectric |
50mm |
- |
Plano |
Zero Phaseshift, Copper |
|
R160 |
|
ZPSM-3.0- 5005 - Dielectric |
3.0" |
- |
Plano |
Zero Phase - Silicon |
|
R160 |
798125 |
ZPCM-3.0-Au-5003-5 - Gold Coating |
3.0" |
- |
Plano |
Zero Phase Copper |
|
R160 |
798125 |
ZPCM-3.0-Au-5028 - Dielectric |
3.0" |
- |
Plano |
Zero Phase Copper |
|
W643
|
BQ919D007H02, 586494, 463116, 812039,
T98100 |
ZPCZ3.0-Au-5010-5 Gold Coating |
3.0" |
- |
Plano |
Zero Phase Copper |
|
W643
|
BQ919D007H02, 586494, 463116, 812039,
LT98100 |
ZPCM3.0-UMR-5026 - Dielectric |
3.0" |
- |
Plano |
Zero Phase Copper |
|
W644
|
BQ919D007H01, 504755, 609647,
LT98200, LU03400, 269252 |
ZPCM-60-Au-5009-5 - Gold Coating |
60mm |
- |
Plano |
Zero Phase Copper |
|
W644
|
BQ919D007H01, 504755, 609647,
LT98200, LU03400, 269252 |
ZPCM-60-Au-5025 - Dielectric |
60mm |
- |
Plano |
Zero Phase Copper |
|
W645
|
BQ919D00H601, 728695 |
Back Reflection Suppressor, Phase Lock Mirror |
60mm |
- |
Plano |
ATRF, Copper |
|
R298
|
BV273C933G51, 571182, , BKONE0539H01,
LT99700 |
B/O, Beam Optimizer, Flex Mirror, A/O
Mirror |
60mm |
- |
Plano |
Adaptive Mirror, Copper |
|
|
|
BellClean For Cleaning
Gold Mirrors |
|
|
|
|
|
900, Phase Retarders or Retroretarder Mirrors
- Superior Mode Quality |
|
R004
|
BKO-ND6483H01, 335587, 102719 |
RRS2.0-90-6001 |
|
|
Plano |
Phase Retarder, Silicon |
|
W646 |
609647 |
RRC60-90-6010 |
60mm |
15mm |
Plano |
Phase Retarder, Copper |
|
W317 |
|
RRC60-90-6009 |
60mm |
6.0mm |
|
Phase Retarder, Copper |
|
LC51600 |
BQ919D005H02, 744069, 609647 |
RRC-3.0-6005-5 UltraMaxR HardCoat |
|
|
Plano |
Phase Retarder, Copper |
*Call LOM for details.

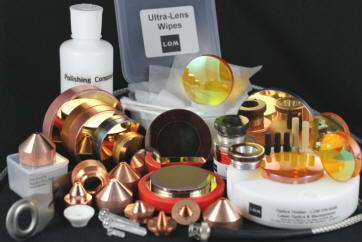

Mitsubishi® Nozzles and Consumables Complete
List
|
|
|
|
|
|
|
