Hypertherm®
PLASMA CONSUMABLES |
|

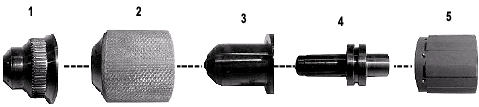

POWERMAX 190C®, PAC 105® TORCH
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-2943 |
120884* |
Shield, Hand |
1 |
|
2 |
AK-2944 |
120898* |
Retaining Cap |
1 |
|
|
AK-4528 |
120883* |
Retainig Cap, Unshielded |
1 |
|
3 |
AK-2941 |
120882* |
Nozzle |
5 |
|
4 |
AK-2940 |
120881* |
Electrode |
5 |
|
5 |
AK-2939 |
120880* |
Swirl Ring |
1 |
|
|
|
|
|
|

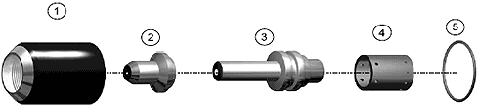

POWERMAX 350®, PAC 110® TORCH
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-0032 |
20218 |
Retaining Cap |
1 |
|
2 |
AK-1860 |
120504 |
Nozzle, Extended, 25A |
10 |
|
3 |
AK-0037 |
20382 |
Electrode, Extended |
10 |
|
4 |
AK-0035 |
20239 |
Swirl Ring |
2 |
|
5 |
AK-0038 |
44016 |
O-Ring |
10 |
POWERMAX 380®, PAC 110T® TORCH
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-3905 |
220016 |
Retaining Cap |
1 |
|
2 |
AK-1860 |
120504 |
Nozzle, Extended, 25A |
10 |
|
3 |
AK-0037 |
20382 |
Electrode |
10 |
|
4 |
AK-3904 |
220013 |
Swirl Ring |
1 |
HYPERTHERM®, POWERMAX 350®, 380®, 190C®, PAC105®,
PAC110®, PAC110t® are the Registered Trademarks of HYPERTHERM INC. * OEM
Manufactured Parts
|
|
