Hypertherm®
PLASMA CONSUMABLES |
|
POWERMAX 1000®, POWERMAX 1250® T60™,
T60M™, T80™, T80M™ TORCHES
|

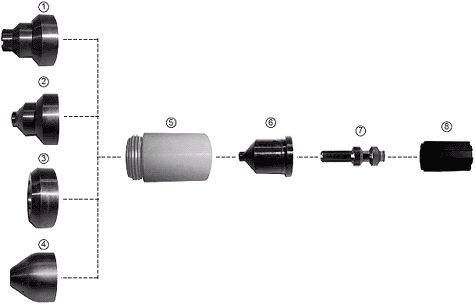

Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-9830 |
120929* |
Shield, Hand, 1000/1250 |
1 |
|
2 |
AK-9831 |
120930* |
Shield, Machine, 1000/1250 |
1 |
|
3 |
AK-4188 |
120979 |
Deflector, 1000/1250 |
1 |
|
4 |
AK-3732 |
120977* |
Shield, Gouging, 1000/1250 |
1 |
|
5 |
AK-9880** |
120928 |
Retaining Cap, 1000/1250 |
1 |
|
|
AK-4573 |
220061* |
Retaining Cap, ohmic, 1000/1250 |
1 |
|
6 |
AK-3890 |
120927* |
Nozzle, Shielded, 80A, 1250 |
5 |
|
|
AK-8405 |
120931* |
Nozzle, Shielded, 60A, 1000/1250 |
5 |
|
|
AK-3891 |
120932* |
Nozzle, Shielded, 40A, 1000/1250 |
5 |
|
|
AK-3943 |
220059* |
Nozzle, Gouging, 60A, 1000 |
5 |
|
|
AK-3892 |
120980 |
Nozzle, Extended, 80A, 1250 |
5 |
|
|
AK-4572 |
220007 |
Nozzle, Extended, 60A, 1000/1250 |
5 |
|
|
AK-3889 |
220006 |
Nozzle, Extended, 40A, 1000/1250 |
5 |
|
|
AK-9998 |
220329 |
Nozzle, 40A |
5 |
|
7 |
AK-4454** |
120926 |
Electrode, 1000/1250 (use w/T-4456) |
5 |
|
8 |
AK-4456** |
120925 |
Swirl Ring, 1000/1250 |
2 |
|
NS |
AK-3745 |
128564* |
Torch Main Body, Hand, 1000/1250 |
1 |
|
NS |
AK-3751 |
128640* |
Torch Main Body, Machine, 1000/1250 |
1 |
|
NS |
AK-4094 |
128644* |
Torch Handle Replacement, 1000/1250 |
1 |
|
NS |
AK-1768 |
002244* |
Safety Trigger Assembly, 1000/1250 |
1 |
|
NS |
AK-1814 |
027254* |
Trigger Spring, 1000/1250 |
1 |
|
NS |
AK-4591 |
128643* |
Mounting Sleeve Replacement, 1000/1250 |
1 |
|
NS |
AK-0994 |
27055 |
Silicone Grease |
1 |
|
FOR MAXIMUM PERFORMANCE use our "AK" series swirl rings with our newly
designed electrodes. |
|
**A unique design which enhances performance and differes from OEM
designs. |
|
HYPERTHERM®, POWERMAX 1000®, POWERMAX 1250®, T60™, T60M™, T80™,
T80M™ are the Registered Trademarks of HYPERTHERM, INC. *OEM
Manufactured Parts |
|
|
