Hypertherm®

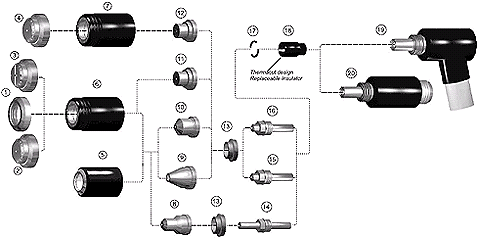

PLASMA CONSUMABLES |
|
MAX70®, MAX80®, MAX100®, PAC130® AKORCHES
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-0070 |
20333 |
Deflector |
1 |
|
2 |
AK-0071 |
020334* |
Machine Shield, 100 Amp |
1 |
|
3 |
AK-0072 |
020335* |
Hand Shield |
1 |
|
4 |
AK-1041 |
020492* |
Machine Shield, 40 Amp |
1 |
|
5 |
AK-0058 |
20184 |
Retaining Cap |
1 |
|
6 |
AK-0073 |
020336* |
Shield Cap |
1 |
|
7 |
AK-0101 |
020490* |
Shield Cap, 40 Amp |
1 |
|
8 |
AK-0100 |
20563 |
Nozzle, Extended |
5 |
|
9 |
AK-0064 |
20339 |
Nozzle, Gouging |
5 |
|
10 |
AK-0059 |
20203 |
Nozzle, 40 Amp |
5 |
|
|
AK-0060 |
20345 |
Nozzle, 80 Amp |
5 |
|
|
AK-0061 |
20195 |
Nozzle, 100 Amp |
5 |
|
11 |
AK-0062 |
20397 |
Nozzle, 80 Amp, Shielded |
5 |
|
|
AK-0063 |
20337 |
Nozzle, 100 Amp, Shielded |
5 |
|
12 |
AK-0099 |
20396 |
Nozzle, 40 Amp, Shielded |
5 |
|
13 |
AK-0065 |
20194 |
Swirl Ring |
2 |
|
14 |
AK-0098 |
20564 |
Electrode, Extended |
5 |
|
15 |
AK-0067 |
20193 |
Electrode, Nitrogen |
5 |
|
16 |
AK-0066 |
20191 |
Electrode, Air |
5 |
|
|
AK-3825 |
120433* |
Electrode |
5 |
|
17 |
AK-0074 |
26018 |
O-Ring |
10 |
|
18 |
AK-0097 |
020189-1 |
Torch Insulator |
1 |
|
19 |
AK-0068 |
20189 |
TMT 100, Hand Torch |
1 |
|
20 |
AK-0069 |
20201 |
TMT 100, Machine Torch |
1 |
|
NS |
AK-0994 |
27055 |
Silicone Grease |
1 |
|
NS |
AK-2222 |
KPH130 |
Spare Parts Kit |
1 |

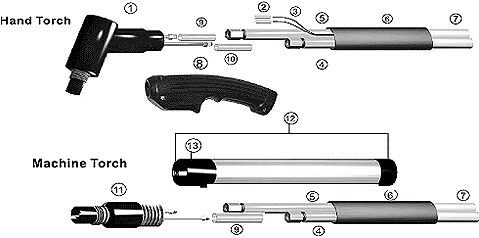

ACCESSORIES
|
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-0068 |
20189 |
TMT 100, Hand Torch |
1 |
|
2 |
AK-1039 |
74069 |
Splice (2) |
1 |
|
3 |
AK-0701 |
47032 |
Control Cable |
FT. |
|
4 |
AK-0718 |
23198 |
Lead, Power, 25' |
1 |
|
|
AK-0719 |
23199 |
Lead, Power, 50' |
1 |
|
|
AK-0722 |
23262 |
Leads, Power, 75' |
1 |
|
5 |
AK-0720 |
23200 |
Lead, Hi-Frequency, 25' |
1 |
|
|
AK-0721 |
23201 |
Lead, Hi-Frequency, 50' |
1 |
|
|
AK-0723 |
23263 |
Leads, Hi-Frequency, 75' |
1 |
|
6 |
AK-0725 |
28326 |
Shielded Leads, 25' |
1 |
|
|
AK-3722 |
028524** |
Shielded Leads, 25', w/ QD |
1 |
|
|
AK-0726 |
28327 |
Shielded Leads, 50' |
1 |
|
|
AK-2925 |
028525** |
Shielded Leads, 50', w/ QD |
1 |
|
|
AK-0728 |
28335 |
Leads, Shielded, 75' |
1 |
|
|
AK-3956 |
028526** |
Shielded Leads, 75', w/ QD |
1 |
|
|
AK-0729 |
29198 |
Leads Package, 25' |
1 |
|
|
AK-0730 |
29199 |
Leads Package, 50' |
1 |
|
|
AK-0371 |
29229 |
Hand Leads, 75' |
1 |
|
|
AK-2905 |
029667** |
Leads Package, 25', w/ QD |
1 |
|
7 |
AK-2906 |
029668** |
Leads Package, 50', w/ QD |
1 |
|
|
AK-0699 |
46034 |
Shielded Braid |
FT. |
|
8 |
AK-0700 |
46038 |
Sheathing |
FT. |
|
9 |
AK-1040 |
9-5636-1 |
Handle W/Switch |
1 |
|
|
AK-0716 |
20468 |
Negative Lead Insulator |
1 |
|
10 |
AK-684 |
20536 |
Pilot Arc Lead Insulator |
1 |
|
11 |
AK-0069 |
20201 |
TMT 100, Machine Torch |
1 |
|
12 |
AK-0713 |
020243* |
Positioning Sleeve, 10" Rack |
1 |
|
|
AK-0715 |
020270* |
Positioning Sleeve, 18" Rack |
1 |
|
13 |
AK-0714 |
020244* |
Insulating Sleeve |
1 |
|
|
AK-0117 |
020242* |
Insulating Sleeve for 020243 |
1 |
|
|
AK-1792 |
020245* |
Torch Mounting Sleeve |
1 |
|
NS |
AK-0710 |
001214* |
Torch Handle |
1 |
|
NS |
AK-0711 |
001217* |
Boot |
1 |
|
NS |
AK-0644 |
5094 |
Switch |
1 |
|
NS |
AK-0724 |
27102 |
Electrode Wrench |
1 |
|
NS |
AK-0727 |
028328* |
Remote Start w/25' Cable |
1 |
|
NS |
AK-0732 |
59008 |
Machine Torch w/ 25' Leads |
1 |
|
NS |
AK-4196 |
059096** |
Machine Torch w/ 25' Leads, w/ QD |
1 |
|
NS |
AK-0733 |
59009 |
Machine Torch w/ 50' Leads |
1 |
|
NS |
AK-3501 |
059097** |
Machine Torch w/ 50' Leads, w/ QD |
1 |
|
NS |
AK-0744 |
59031 |
Machine Torch w/ 75' Leads, w/o QD |
1 |
|
NS |
AK-0756 |
59076 |
Hand Torch w/ 25' Leads |
1 |
|
NS |
AK-0757 |
59077 |
Hand Torch w/ 50' Leads |
1 |
|
NS |
AK-0758 |
59079 |
Hand Torch w/ 75' Leads, w/o QD |
1 |
|
NS |
AK-3355 |
059095** |
Hand Torch w/ 75' Leads, w/ QD |
1 |
|
NS |
AK-0158 |
059093** |
Hand Torch w/ 25' Leads & QD |
1 |
|
NS |
AK-1849 |
059094** |
Hand Torch w/ 50' Leads & QD |
1 |
|
NS |
AK-1822 |
028518* |
Quick Disconnect |
1 |
|
NS |
AK-1823 |
028519* |
Recpt Assy: 80A/100A w/ QD |
1 |
|
NS |
AK-4006 |
028909* |
Plug Assembly, Machine Torch |
1 |
|
HYPERTHERM®, MAX70®, MAX80®, MAX100®, PAC130AKM are the Registered
trademarks of HYPERTHERM INC. * OEM Manufactured Parts |
|
|
