Hypertherm®
PLASMA CONSUMABLES |
|

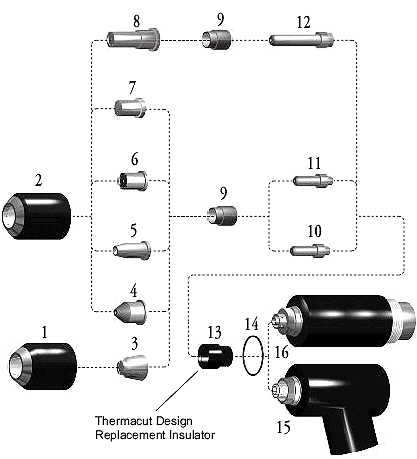

MAX40®, HT40®, PAC140® TORCHES
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
1 |
T-0044 |
20200 |
Retaining Cap, Tapered |
1 |
2 |
T-0043 |
20104 |
Retaining Cap |
1 |
3 |
T-0048 |
20197 |
Nozzle, Hi-Visibility |
10 |
4 |
T-0047 |
20131 |
Pipe Nozzle |
10 |
5 |
T-0096 |
20340 |
Gouging Nozzle |
5 |
6 |
T-0045 |
20115 |
Nozzle, Hand |
10 |
7 |
T-0046 |
20102 |
Nozzle, Machine |
10 |
8 |
T-0050 |
20466 |
Nozzle, Extended |
10 |
9 |
T-0051 |
20101 |
Swirl Ring |
2 |
10 |
T-0052 |
20103 |
Electrode, Air |
10 |
11 |
T-0053 |
20167 |
Electrode, Nitrogen |
10 |
12 |
T-0054 |
20467 |
Electrode, Extended |
10 |
13 |
T-0095 |
020114-1 |
Torch Insulator TMT Design, Replaceable Part |
1 |
14 |
T-0038 |
44016 |
O-Ring |
10 |
15 |
T-0055 |
20122 |
TMT40, Torch W/Handle |
1 |
16 |
T-0056 |
20114 |
TMT40, Machine Torch |
1 |
NS |
T-0994 |
27055 |
Silicone Grease |
1 |
NS |
T-3474 |
KPH140 |
Spare Parts Kit |
1 |

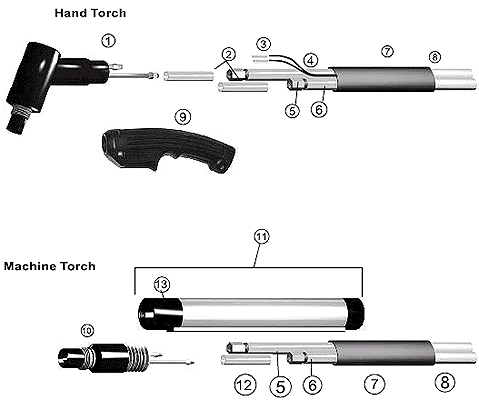

ACCESSORIES
Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
1 |
AK-0055 |
20122 |
TMT40, Torch W/Handle |
1 |
2 |
AK-0684 |
020536* |
Lead Insulator (2) |
1 |
3 |
AK-1039 |
74069 |
Splice (2) |
1 |
4 |
AK-0701 |
47032 |
Control Cable |
1 |
5 |
AK-0685 |
23156 |
Lead, Power, 25' |
1 |
|
AK-0687 |
23158 |
Lead, Power, 25' |
1 |
|
AK-0689 |
23160 |
Lead, Power, 50' |
1 |
6 |
AK-0686 |
23157 |
Lead, Hi-Frequency, 25' |
1 |
|
AK-0688 |
23159 |
Lead, Hi-Frequency, 35' |
1 |
|
AK-0690 |
23161 |
Lead, Hi-Frequency, 50' |
1 |
7 |
AK-0694 |
28288 |
Leads, 25' Shielded |
1 |
|
AK-0695 |
28289 |
Leads, 35' Shielded |
1 |
|
AK-0696 |
28290 |
Leads, 50' Shielded |
1 |
|
AK-0697 |
29129 |
Leads, 25' Hand |
1 |
|
AK-0698 |
29130 |
Leads, 50' Hand |
1 |
8 |
AK-0699 |
46034 |
Shielded Braid, Mach. |
1 |
|
AK-0700 |
46038 |
Sheathing, Hand |
1 |
9 |
AK-1040 |
9-5636-1 |
Handle W/Switch |
1 |
10 |
AK-0056 |
20114 |
TMT 40, Machine Torch |
1 |
11 |
AK-0682 |
020231* |
Position. Sleeve, 10’’ Rack |
1 |
|
AK-0683 |
020269* |
Position. Sleeve, 18’’ Rack |
1 |
12 |
AK-0679 |
004302* |
Lead Insulator |
1 |
13 |
AK-0681 |
020205* |
Insulating Sleeve |
1 |
NS |
AK-0704 |
57019 |
Machine Torch w/25’ Leads |
1 |
NS |
AK-0705 |
57020 |
Machine Torch w/50’ Leads |
1 |
NS |
AK-0706 |
57053 |
Machine Torch w/25’ Leads |
1 |
NS |
AK-0707 |
57054 |
Machine Torch w/50’ Leads |
1 |
NS |
AK-0708 |
57112 |
Hand Torch w/25’ Leads |
1 |
NS |
AK-0709 |
57113 |
Hand Torch w/50’ Leads |
1 |
NS |
AK-0644 |
5094 |
Switch |
1 |
HYPERTHERM®, MAX40®, HT40®, PAC140TM are the Registered Trademarks of
HYPERTHERM INC. |
|
|
