Hypertherm®
PLASMA CONSUMABLES |
|
HT4400®
|

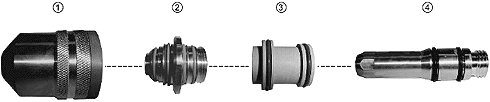

Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-2931 |
120786* |
Retaining Cap (w/o IHS.Tab) |
1 |
|
|
AK-4515 |
120907* |
Retaining Cap (with IHS.Tab) |
1 |
|
2 |
AK-8716** |
120934 |
Nozzle, Oxygen, 400 Amp |
1 |
|
|
AK-8714** |
120794 |
Nozzle, Oxygen, 300A (200A N2) |
1 |
|
|
AK-8713** |
120787 |
Nozzle, Oxygen, 300 Amp |
1 |
|
|
AK-8712** |
120777 |
Nozzle, Oxygen, 100 Amp |
1 |
|
|
AK-8715** |
120856 |
Nozzle, Oxygen, 400 A, N2 |
1 |
|
3 |
AK-2933 |
120939* |
Swirl Ring, O2, 400A |
1 |
|
|
AK-3547 |
120913* |
Swirl Ring, Oxygen, 300 Amp |
1 |
|
|
AK-3547 |
120913* |
Swirl Ring, Oxygen, 300 Amp |
1 |
|
|
AK-2973 |
120791* |
Swirl Ring, Oxygen, 200 Amp |
1 |
|
|
AK-4145 |
120783* |
Swirl Ring, Oxygen, 100 Amp |
1 |
|
|
AK-4574 |
120853* |
Swirl Ring, Oxygen, 200A/400A N2 |
1 |
|
4 |
AK-4912** |
120810AG |
Electrode, Silver-EX, 400A, O2 |
1 |
|
|
AK-4911** |
120802AG |
Electrode, Silver-EX, 300A, O2 |
1 |
|
|
AK-4915** |
120793AG |
Electrode, Silver-EX, 200A O2 |
1 |
|
|
AK-8944 |
120785 |
Electrode, Oxygen 100 Amp |
1 |
|
|
AK-8948 |
120855 |
Electrode, 200A/400 A N2 |
1 |
|
**A UNIQUE DESIGN WHICH ENHANCES PERFORMANCE AND DIFFERS FROM OEM
DESIGNS |
|
HYPERTHERM®, HT4400® are the Registered Trademarks of HYPERTHERM INC. *
OEM Manufactured Parts |
|
|
|
|
